Spoiler guide - MGF was created by Leigh Ping
Posted 12 years 4 months ago
Lots of owners like to fit spoilers to their pride and joy (and sometimes they put one on their cars too). :lol:
If you plan to fit one yourself, you should know that it involves drilling holes in your boot lid. There's no going back once you've started. Don't bother getting underway unless you're confident of doing a good job yourself. Alternatively you could get yourself a 'man that can' or three...
'Rich in Vancouver'.
Kevin 'Dunga'.
Graham from 'Body Magic'.
Here's a couple of pictorial guides of MGF spoilers being erected - (Pics and info courtesy of 'Rich in Vancouver').

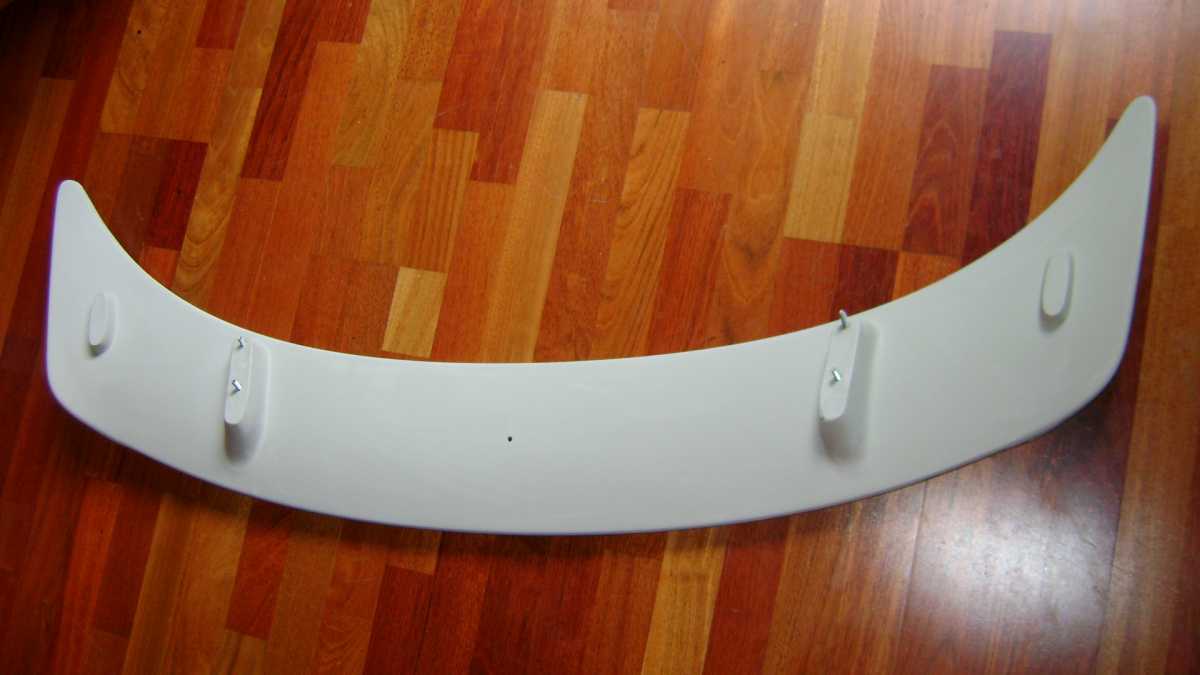

Aftermarket Trophy Spoiler as received. Gelcoat quality was very good just requiring a final sanding, however one stud was at an angle and this
had to be allowed for during installation. There was also a small void in one leg which had to be filled before finishing. This spoiler was sourced from Moto-Build Racing.
Center line established on boot lid. Measure out from this point to locate holes.
Note: Lines near boot edge indicate rear edge of stanchions.
Drill locations added by measure. Notations indicate hole adjustments following spoiler test fit before drilling.

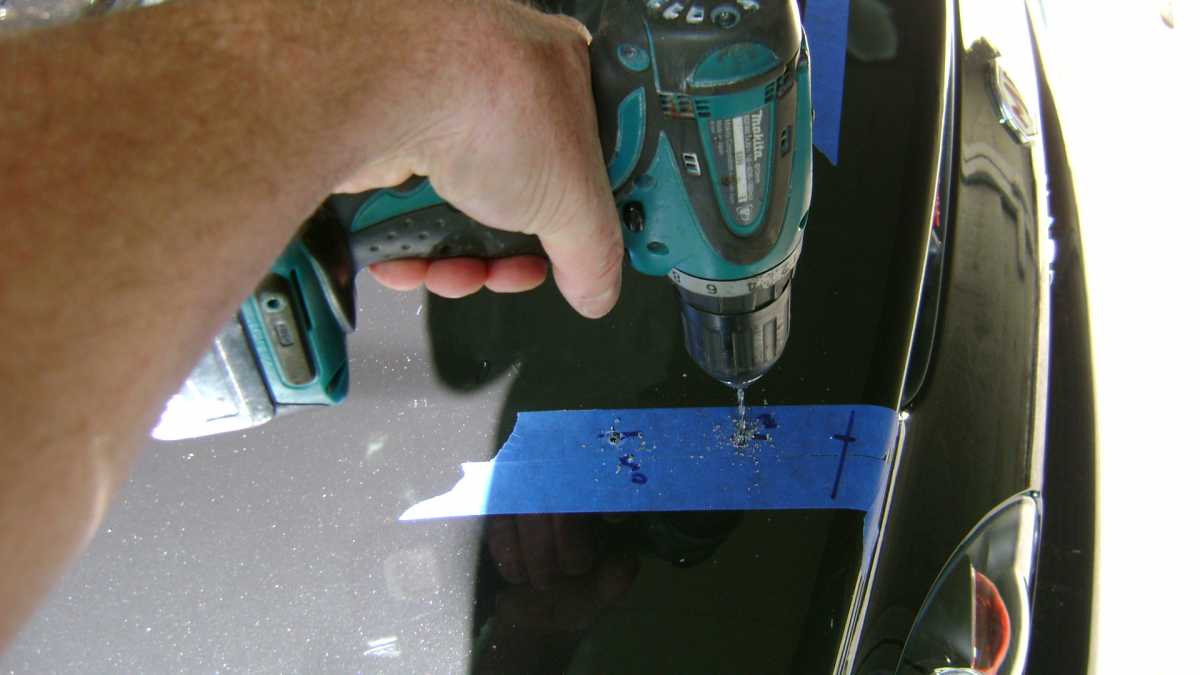

Drilling pilot holes according to notations marked on tape. Using a small bit allows you to move the holes a bit if they are out.

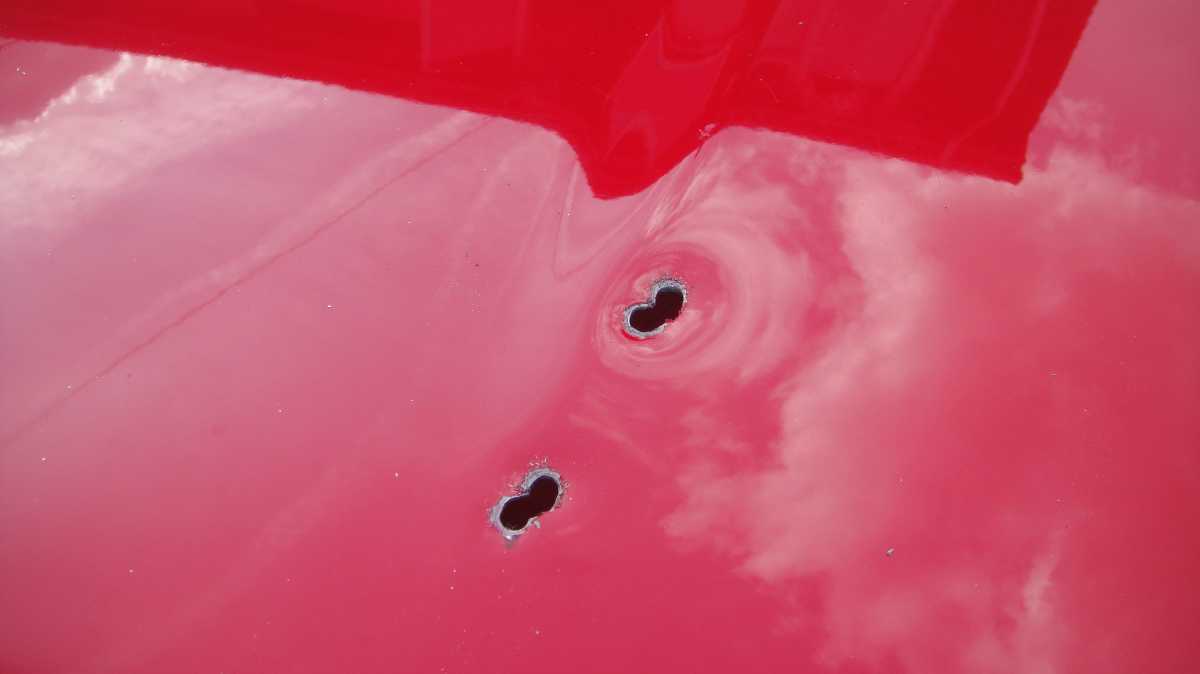

Drill full size holes after another trial placement of spoiler.

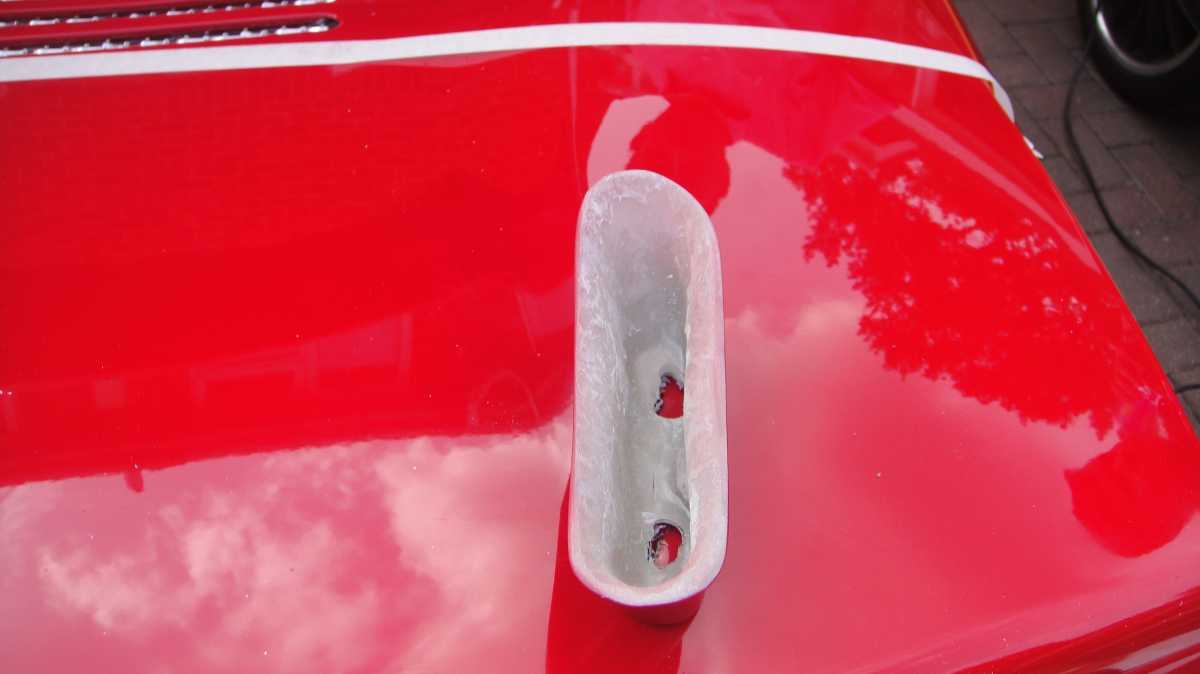

View from inside of boot lid.
Note: that the forward hole goes neatly through a reinforcement in the boot frame.
Test Fit.
Note: I made gaskets to go between the stanchions and the body out of rubber sheet.
Inside I used large fender washers with rubber washers underneath to spread the load of the nuts.

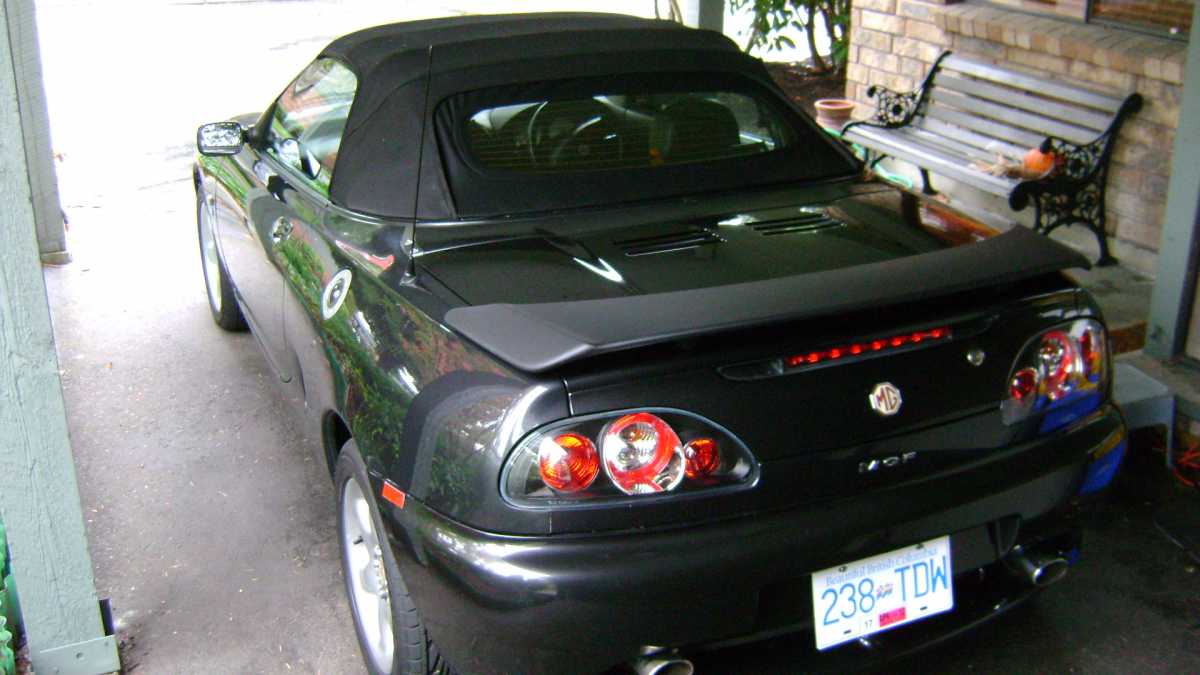

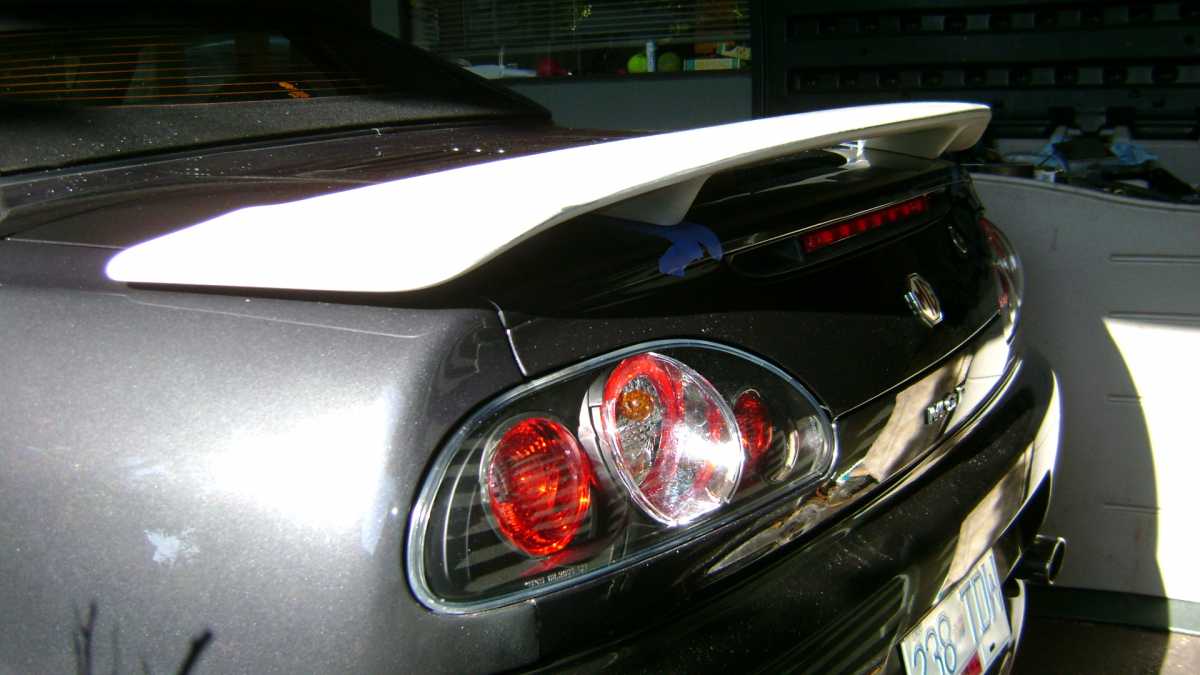

Finished installation with carbon-fibre look vinyl applied.
A superb finished look, in the pics above, by Rich. Great job!
Here's Softly~Softly Jans' spoiler being erected now. The preparation and paintwork was done by 'Graham from Body Magic' and Kevin, 'Dunga' on the forum, mounted it on the boot lid.

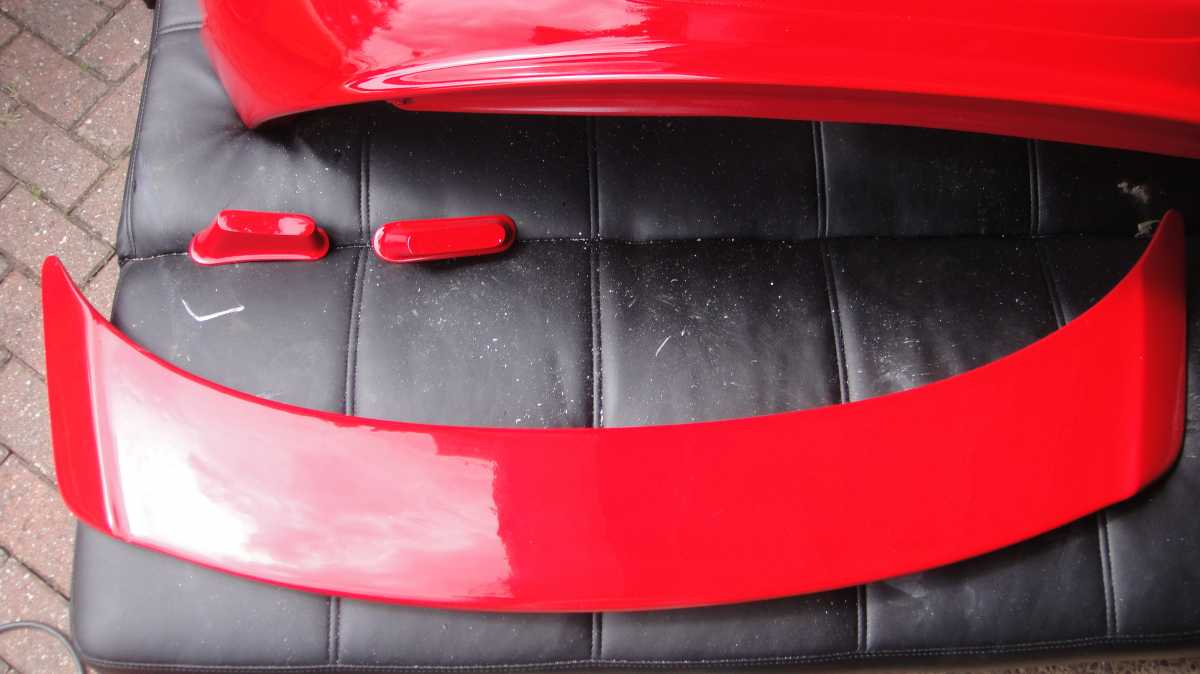

The new spoiler.
The old look.

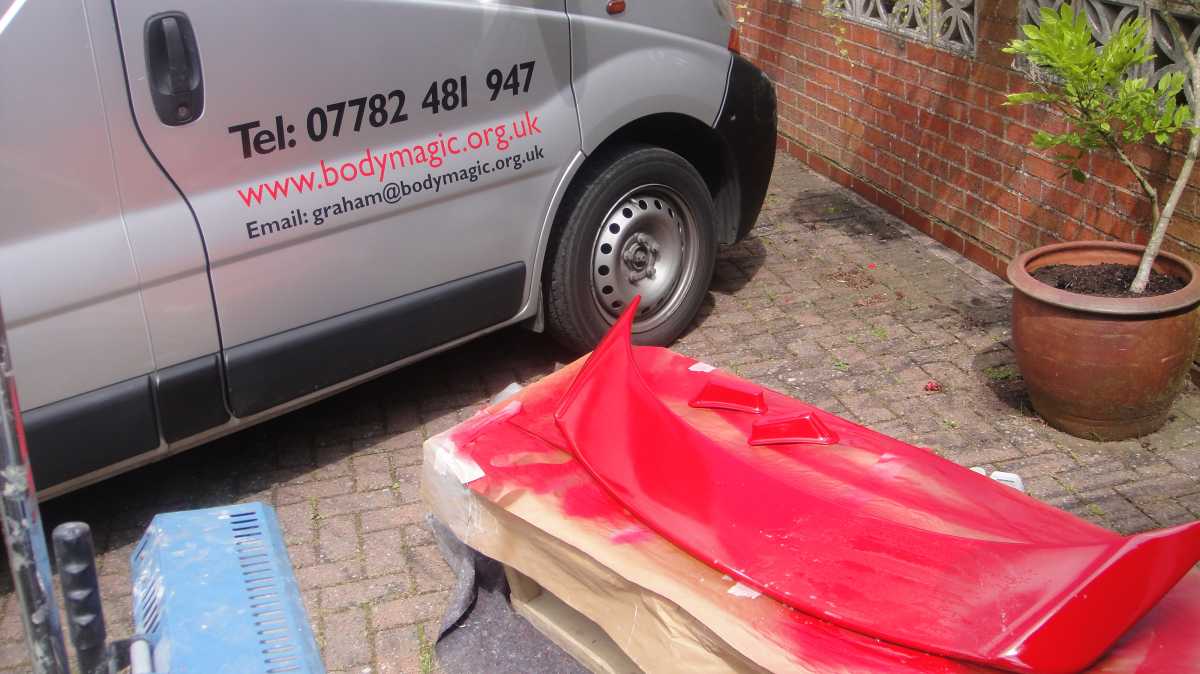

'Graham' hard at it doing some wet and dry sanding and painting to achieve a beautiful finish.
The new look is superb.
You may as well get a new bumper done while you're at it.
'The job's a good un.'
Well, I hope this guide helps you out in making a decision on spoilers and a big warm thanks to those that helped to make it. :broon:
If you've already got a nice spoiler on your car then please feel free and add some pics here to show us. Cheers.. Leigh.
If you plan to fit one yourself, you should know that it involves drilling holes in your boot lid. There's no going back once you've started. Don't bother getting underway unless you're confident of doing a good job yourself. Alternatively you could get yourself a 'man that can' or three...
'Rich in Vancouver'.
Kevin 'Dunga'.
Attachment 2_2012-07-23.JPG not found
Graham from 'Body Magic'.
Here's a couple of pictorial guides of MGF spoilers being erected - (Pics and info courtesy of 'Rich in Vancouver').
Aftermarket Trophy Spoiler as received. Gelcoat quality was very good just requiring a final sanding, however one stud was at an angle and this
had to be allowed for during installation. There was also a small void in one leg which had to be filled before finishing. This spoiler was sourced from Moto-Build Racing.
Center line established on boot lid. Measure out from this point to locate holes.
Note: Lines near boot edge indicate rear edge of stanchions.
Drill locations added by measure. Notations indicate hole adjustments following spoiler test fit before drilling.
Drilling pilot holes according to notations marked on tape. Using a small bit allows you to move the holes a bit if they are out.
Drill full size holes after another trial placement of spoiler.
View from inside of boot lid.
Note: that the forward hole goes neatly through a reinforcement in the boot frame.
Test Fit.
Note: I made gaskets to go between the stanchions and the body out of rubber sheet.
Inside I used large fender washers with rubber washers underneath to spread the load of the nuts.
Finished installation with carbon-fibre look vinyl applied.
A superb finished look, in the pics above, by Rich. Great job!
Here's Softly~Softly Jans' spoiler being erected now. The preparation and paintwork was done by 'Graham from Body Magic' and Kevin, 'Dunga' on the forum, mounted it on the boot lid.
The new spoiler.
Attachment 1_2012-07-23.JPG not found
The old look.
'Graham' hard at it doing some wet and dry sanding and painting to achieve a beautiful finish.
Attachment 8.JPG not found
The new look is superb.
Attachment 11.JPG not found
Attachment 12.JPG not found
Attachment 13.JPG not found
You may as well get a new bumper done while you're at it.
Attachment 14.JPG not found
Attachment 15.JPG not found
Attachment 16.JPG not found
'The job's a good un.'
Attachment 17.JPG not found
Well, I hope this guide helps you out in making a decision on spoilers and a big warm thanks to those that helped to make it. :broon:
If you've already got a nice spoiler on your car then please feel free and add some pics here to show us. Cheers.. Leigh.
Please Log in or Create an account to join the conversation.
- David Aiketgate
-
Offline
- David
-
- mgf mk2 freestyle mpi 16" wheels, in Anthracite.
- Posts: 20332
- Thanks: 4438
Replied by David Aiketgate on topic Re: Spoiler guide - MGF
Posted 12 years 4 months ago
Nice one Leigh.
I suggest, however, that you don't let those guys do any sign writing!
Yours,
The Spelling Police
I suggest, however, that you don't let those guys do any sign writing!
Yours,
The Spelling Police
David
:shrug:
Please Log in or Create an account to join the conversation.
- Diesel Destroyer
-
Offline
- Master MGer
-
- Posts: 3438
- Thanks: 511
- Leigh Ping
-
Away
Topic Author
- Moderator
-
- Posts: 6838
- Thanks: 1631
Replied by Leigh Ping on topic Re: Spoiler guide - MGF
Posted 12 years 4 months ago
Well, I've seen some of your work first hand. You don't need it.. but good luck anyway. :broon:
Don't forget the pics before your car becomes too light and floats away in the breeze. :lol:
"Something unique" you say.
Don't forget the pics before your car becomes too light and floats away in the breeze. :lol:
"Something unique" you say.
Please Log in or Create an account to join the conversation.
- Luckymarine
-
Offline
- Qualified MGer
-
- Posts: 661
- Thanks: 321
Replied by Luckymarine on topic Re: Spoiler guide - MGF
Posted 12 years 4 months ago
Oh the list! the list of stuff to do gets longer by the day!
1) Fix engine
2)Front splitter
3)Plasma dials
4)Side vent modifications
5)Custom alarm/remote start
6)Switch "fettle"/push button start
6)Rear spoiler?
And more....
The spoilers look good it just the drilling into the bootlid that scares me... If I could get hold of a spare bootlid fI could swap over as and when then I'd probably have one in a shot.

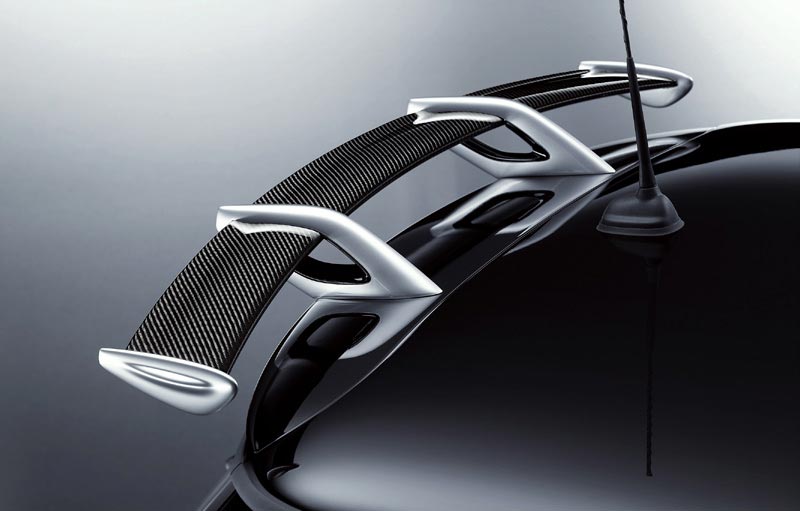

That mini one looks interesting, does anyone know how the lad fettling the electronic Audi TT spoiler got on?
1) Fix engine
2)Front splitter
3)Plasma dials
4)Side vent modifications
5)Custom alarm/remote start
6)Switch "fettle"/push button start
6)Rear spoiler?
And more....
The spoilers look good it just the drilling into the bootlid that scares me... If I could get hold of a spare bootlid fI could swap over as and when then I'd probably have one in a shot.
That mini one looks interesting, does anyone know how the lad fettling the electronic Audi TT spoiler got on?
Please Log in or Create an account to join the conversation.
- Rich in Vancouver
-
Offline
- Senior MGer
-
- Posts: 1882
- Thanks: 666
Replied by Rich in Vancouver on topic Re: Spoiler guide - MGF
Posted 12 years 4 months ago
My bootlid stays up with no problem, but if you let it go when closing it does slam.
Please Log in or Create an account to join the conversation.
- Diesel Destroyer
-
Offline
- Master MGer
-
- Posts: 3438
- Thanks: 511
Replied by PQD44 on topic Re: Spoiler guide - MGF
Posted 12 years 4 months ago
Just a couple of things to be aware of.

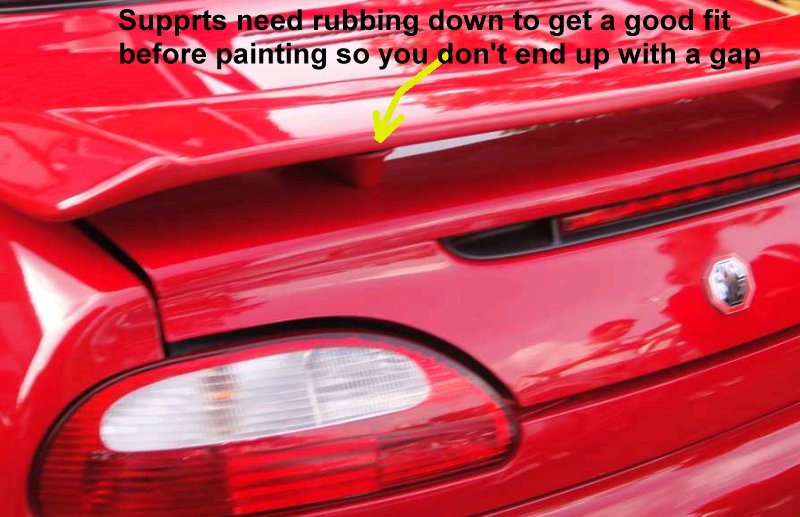

Before you start any painting offer up the supports to the the spoiler body.
The one I received and was warned about by Tracy (pendle lass), did not fit well and needs sanding down to get a good fit.
If you don't do this preparation you will end up with a gap
The whole spoiler and supports will need rubbing down prior to painting as they are not a smooth finish.

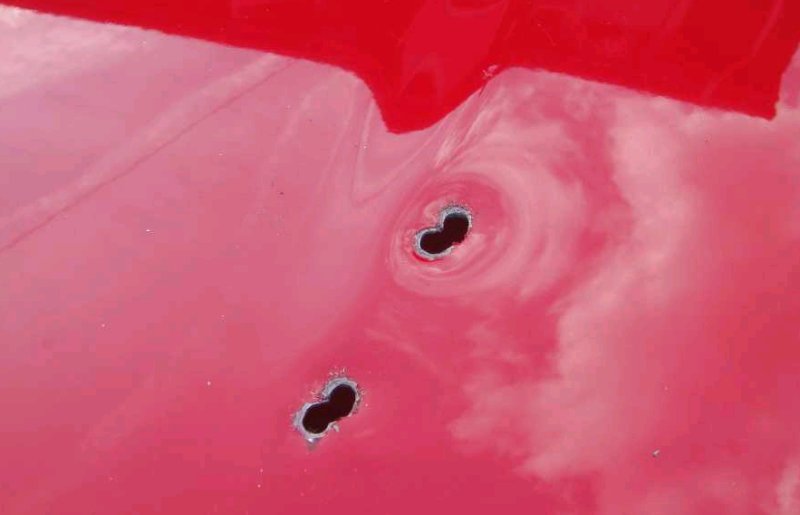

After drilling holes in the boot
You need to paint the bare metal to prevent it rusting before fitting the spoiler.
Before you start any painting offer up the supports to the the spoiler body.
The one I received and was warned about by Tracy (pendle lass), did not fit well and needs sanding down to get a good fit.
If you don't do this preparation you will end up with a gap
The whole spoiler and supports will need rubbing down prior to painting as they are not a smooth finish.
After drilling holes in the boot
You need to paint the bare metal to prevent it rusting before fitting the spoiler.
Please Log in or Create an account to join the conversation.
Replied by PQD44 on topic Re: Spoiler guide - MGF
Posted 12 years 4 months ago

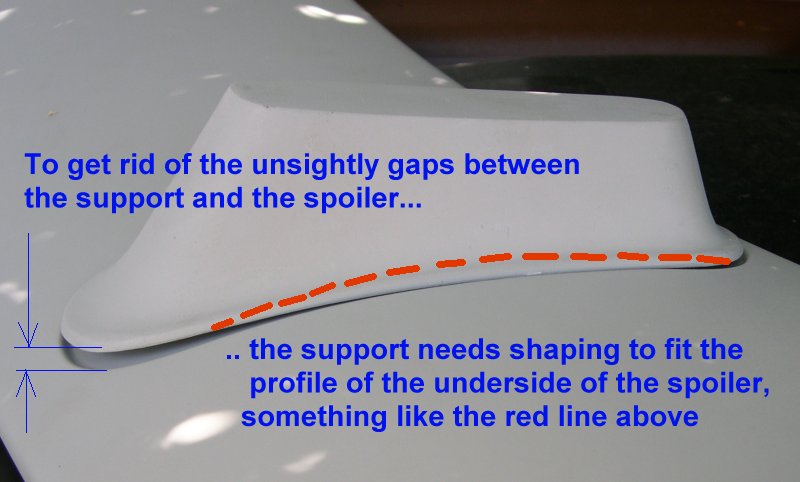

I'm sure it was prepared for painting, what I mean is that the actual supports themselves need sanding, to shape them, to fit the underside of the spoiler.
