SPLICE SJ30

Hi wonder if anyone happens to know where splice SJ30 is located in a MGF/TF -think its the same location in both models.
The splice connects togther all purple wiring for clock /radio/diag socket/footwell lamps and the one I am interested in -the rear loadspace (boot) lamp.( from FUSE 3 on a 2003 onwards TF)
I wnat to use the wiring for the boot lamp ( the lamp is a power drain liability in my opinion anyway) to wire up a boot release switch -so would be really handy to brake into the purple wire before it gets to the SJ30 splice and the fuse F3
thnaks
Mike

You may find the info here - http://www.the-t-bar.com/community/downloads/category/5-electrical-diagrams

thank you -will check and see if I can find what I need

Mike

Hello, did you find the splice joint? I need to replace a burnt boot lamp purple wire

Have you looked at the wiring on the boot hinge in first instance? . This is a notorious point of failure and is easy to resolve by replacing the wires that move when the hinge opens

Is your car an f or a tf? I find the f circuit diagram easier to follow when cross referencing the electrical drawings. The drawings have a tremendous amount of information but you have to read the preamble to fully understand the nomenclature.
When referring to both circuit & electrical diagrams I have both open on my computer & toggle between the two.
Once you have broken through the electricity panic barrier, locating any item becomes procedural.
I can’t help you directly with resolving your problem as I’m in a church yard somewhere in England, but as you have had the foresight to ask on T-bar, you’re obviously bright enough to work this through, once your neurones are lined up correctly.
Best of luck.
M

With the assumption that Pektron MG TF have the splice SJ30 at same position as Lucas MG F & MG TF, we can see that distance from splice is as follows:

1.0 square mm wire from fuse box - 88.5 cm
0.5 square mm wires from:
- load space lamp - 484.5 cm
- front interior lamp (rear view mirror) - 214.5 cm
- diagnostic socket - 92.5 cm
- radio - 35 cm
- analogue clock - 44.5 cm
- footwell lamp LH side - 44 cm
- footwell lamp RH side - 79 cm

After seeing all these measures I see that radio has the shortes path to the splice point. Second one is LH side footwell light. So I assume that splice point should be on the LH side behined the radio.

These distances, wire gauges, colours etc & other information on the drawings make this information indispensable.
These are the “map references” to guide you to that “X” spot.
M

Given the birth date on the profile, 01-01-01
and the history of the original post, I think Mr patch it, (gettit?) is a phisherman
he may prove me wrong of course.

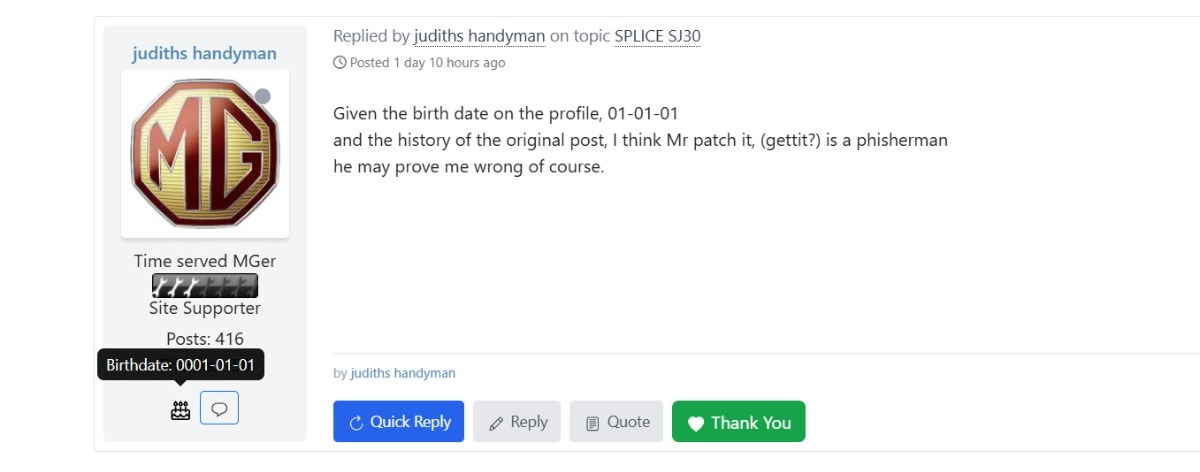

judiths handyman wrote:
